Concertina razor wire is intended to erect highly effective physical barriers and is used either as temporary (mobile) barrier or a fixed one installed onto the ground or to the fence.

Concertina razor wire produced by OCEAN is a durable and effective barrier for perimeter protection of various units.

We are the leading producer of concertina razor wire in Russia and manufactures it according to the standards of Russian Ministry of Defense and Ministry of Internal Affairs, by which Concertina product is certified and recommended for usage.

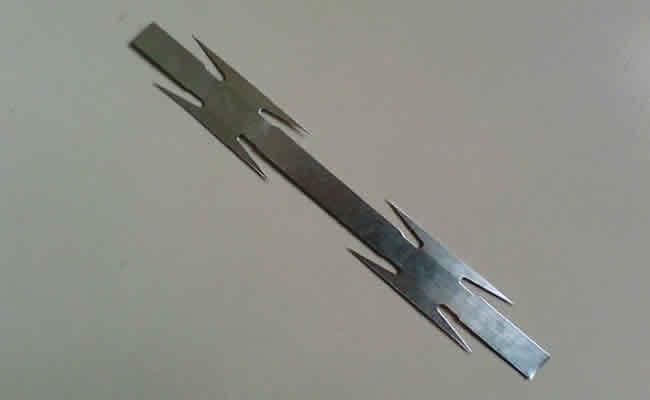

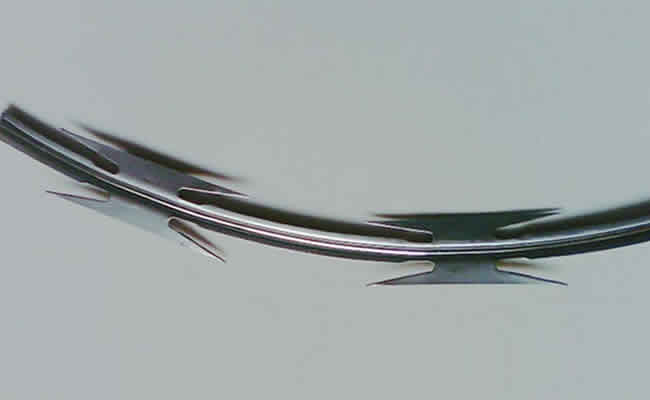

All materials used in the process of the concertina razor wire production (core wire (2.5 mm in diameter) and barbed tape) are made of hot dipped galvanized steel that is why razor wire is fully corrosion resistant.

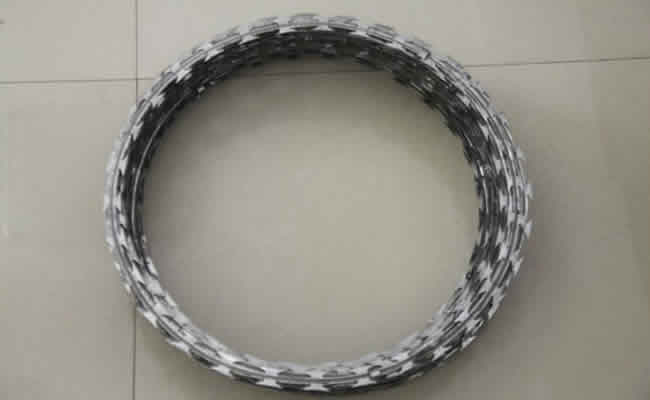

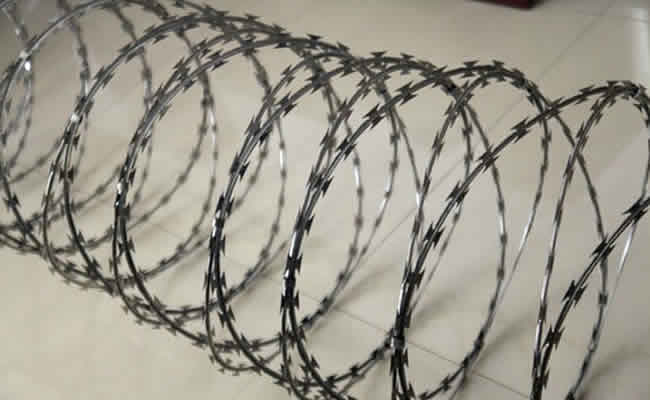

Concertina razor wire is a spiral, coiled up from the reinforced barbed tape. The adjoining loops of the spiral are connected in the particular way with each other which makes concertina wire spatial and almost insuperable.
For the loop connection we use hot dipped galvanized clips or annealed galvanized wire. Either way is available by the customer’s request.

Reference Number	Blade Style	Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO-10		0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28		0.5±0.05	2.5	28	15	45±1
BTO-30		0.5±0.05	2.5	30	18	45±1
CBT-60		0.5±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65		0.5±0.05	2.5±0.1	65±2	21±1	100±2
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)  Standard materials are either galvanized or stainless steel.  Standard packages products are shown in the tables above, special specifications available on request.

Barbed Tape Wire Specification:

Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	7-8M	CBT-60.65	Single coil
500mm	56	12-13M	CBT-60.65	Single coil
700mm	56	13-14M	CBT-60.65	Single coil
960mm	56	14-15M	CBT-60.65	Single　coil
450mm	56	8-9M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
500mm	56	9-10M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross　type
600mm	56	10-11M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	8-10M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
700mm	56	10-12M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
800mm	56	11-13M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
900mm	56	12-14M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
960mm	56	13-15M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
980mm	56	14-16M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
Notes:  Standard products are shown in the tables above, special specifications available on request.  Standard materials are either galvanized or stainless steel.
