When requesting a quote, please specify:
- size of units (length x width x height)
- type of mesh
- type of coating
EXAMPLE: No. 100 Reno mattresses 4x2x0.23 m - Mesh type 6x8—Wire diam. 2.2 mm- Galvanized

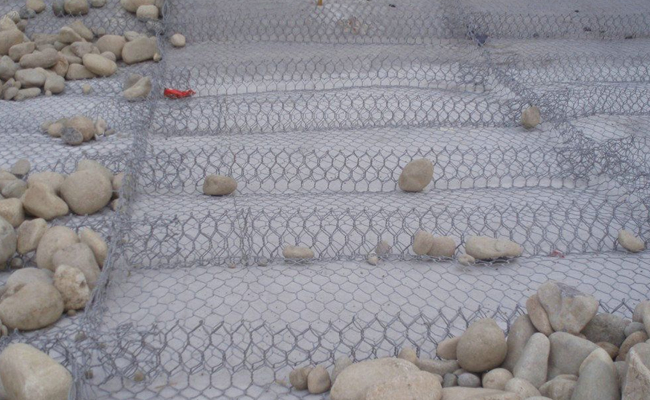

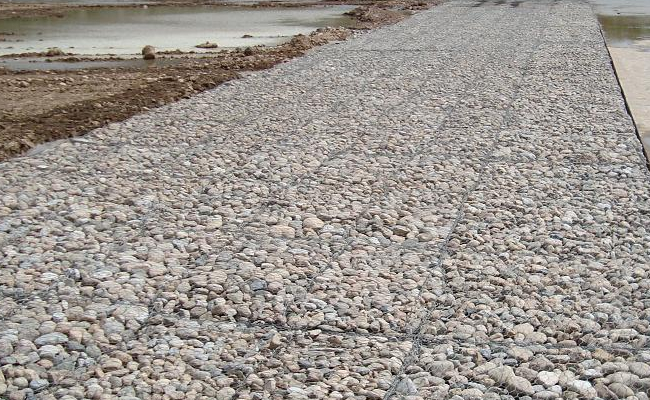

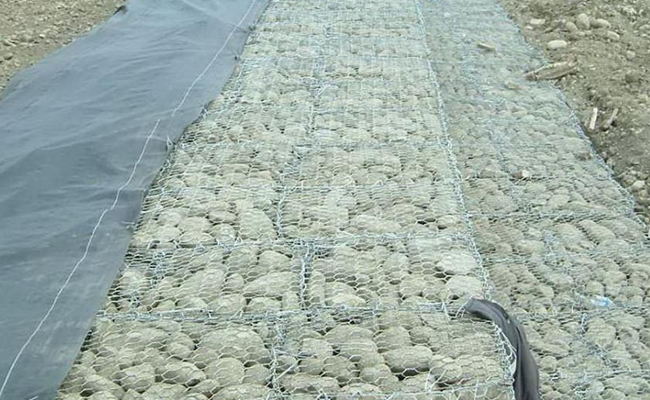

The Gabion Mattress is a structure made of hexagonal double twisted wire mesh, as per EN 10223-3 (Figs. 1, 2). Reno mattresses are filled with stones at the project site to form flexible and permeable, monolithic structures such as river bank protection and channel linings for erosion control. The steel wire used to manufacture the mattress is heavily zinc-coated soft temper steel. The standard combinations of mesh and wire are shown in Tab. 2. In order to reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter . Gabion Mattress are divided into uniformly partitioned cells by internal diaphragms.
Long(m) | Width(m) | High(m) | Mesh type(m) |
3m | 2m | 0.15-0.20-0.25 | 5x7 |
4m | 2m | 0.15-0.20-0.25 | 5x7 |
5m | 2m | 0.15-0.20-0.25 | 5x7 |
6m | 2m | 0.15-0.20-0.25 | 5x7 |
3m | 2m | 0.17-0.23-0.30 | 6x8 |
4m | 2m | 0.17-0.23-0.30 | 6x8 |
5m | 2m | 0.17-0.23-0.30 | 6x8 |
6m | 2m | 0.17-0.23-0.30 | 6x8 |
